Mosfet - V3 with wiring - JeffTron

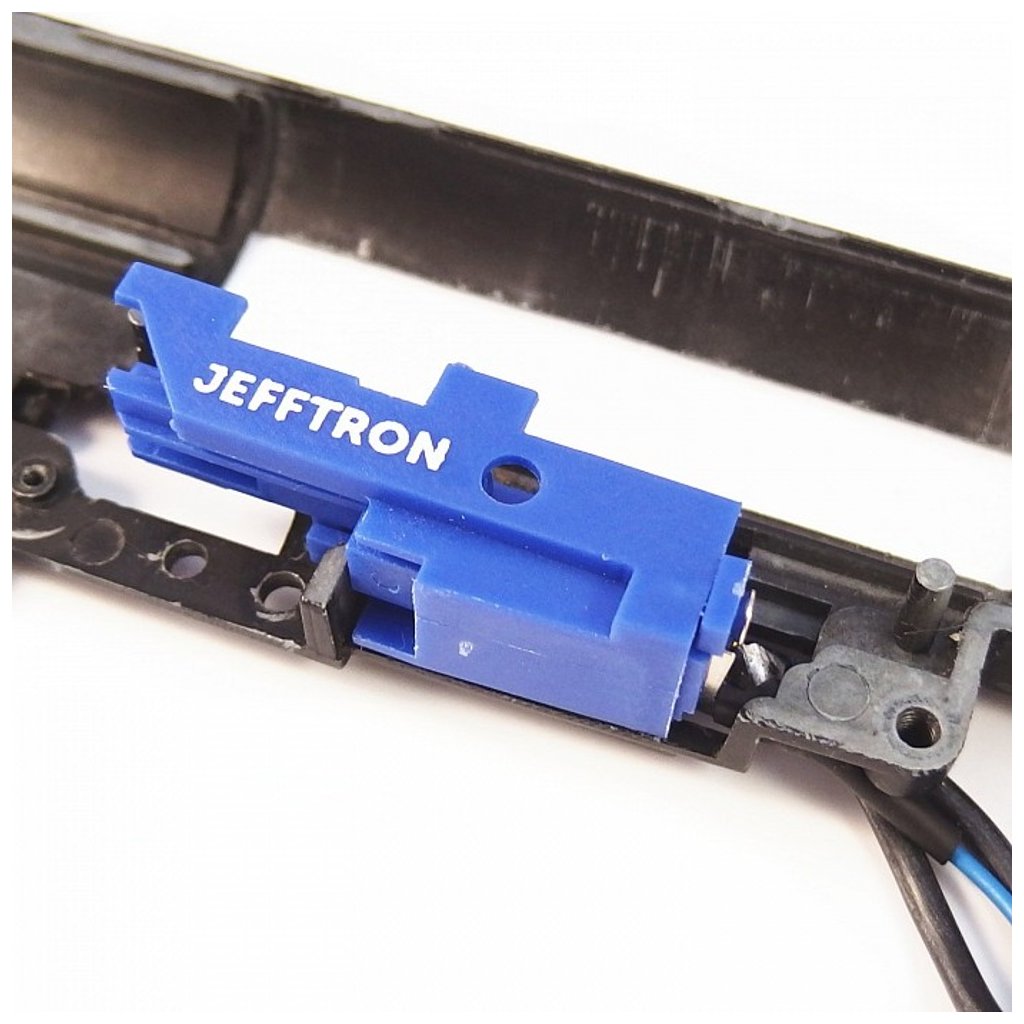

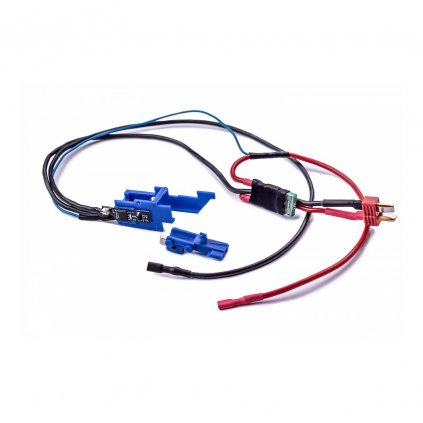

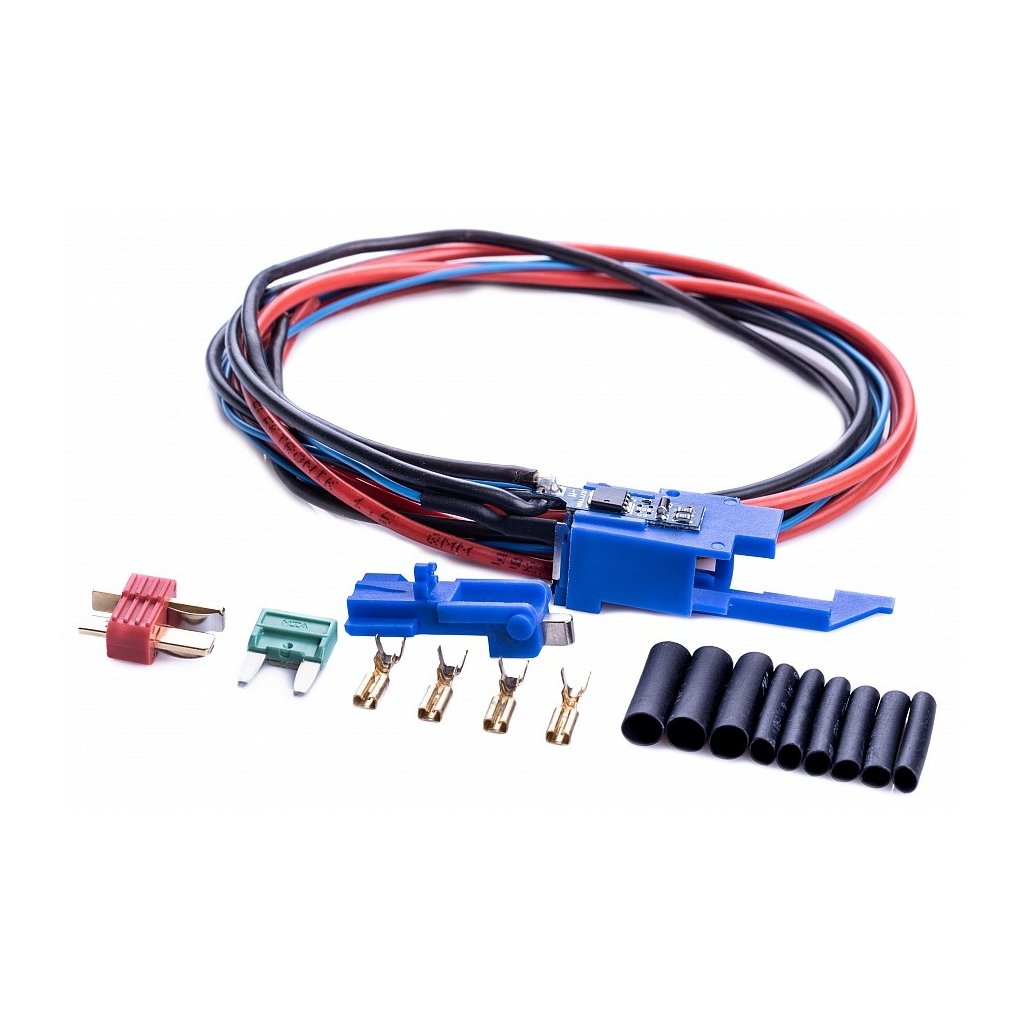

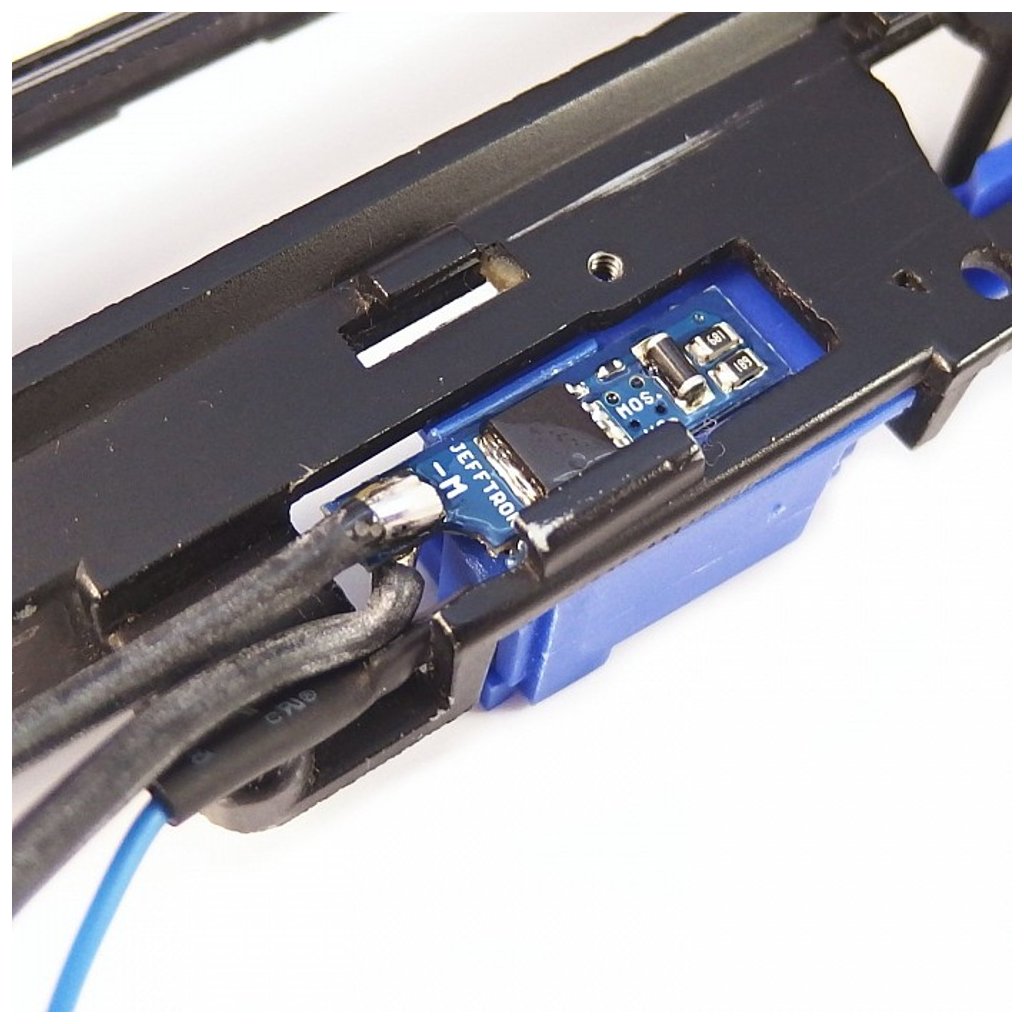

SPECIFICATIONS: - Built-in mosfet on switching contacts from SHS - Easy installation inside the v.3 mechbox - Pre-prepared wiring allows for faster and easier installation in the weapon and is long enough for all types of weapons. Simply shorten the wires to the required length and connect the connectors (included in the package) - The device has 2 black wires with MPPE insulation with a cross-section of 1.5 mm², length 400 mm to the motor and 600 mm to the battery, and a blue wire with a cross-section of 0.34 mm² with a length of 1000 mm for connection anywhere to the red wire - The package also includes a 1000 mm long red wire with MPPE insulation, 1.5 mm2 cross-section - The electronics board is covered with a varnish that protects against water ingress into the device - If you want to use your own wires, choose the version without cabling - Designed for springs up to m160 (corresponds to a current of 75A for a single shot or 25A for burst fire for a maximum of 30 seconds). For higher loads, choose Mosfet II (placed outside the gearbox) - Designed for all types of commonly used batteries up to 17 V (Ni-xx 8.4 - 12V, lipol 7.4 - 14.8V) - Trigger contacts do not burn out - No current is drawn in idle state - Due to the principle of operation of the AEG weapon mechanism, the piston stops in a random position in AUTO mode - For this device to function properly, the gearbox must have a functional interrupter, switch slide, reverse latch, trigger, and trigger stop (secured), i.e., as in a standard gearbox PACKAGING: - MOSFET on switching contacts with powered wires - Trigger boat - DeanT male connector - 30A mini plug fuse - 4x faston sleeve - 6x black heat shrink tubing 3.2mm, length 20mm - 3x black heat shrink tubing 4.8mm, length 20mm - installation manual WARNING:  The installation of this device requires a professional who knows how to solder and disassemble an AEG weapon. Never use a transformer soldering iron! Despite our best efforts, we cannot guarantee 100% compatibility of the device with all version 3 gearboxes. For most commonly available and widely used brands, the Mosfet - V3 can be installed without major modifications.
