Mosfet - V3 above the gearbox - JeffTron

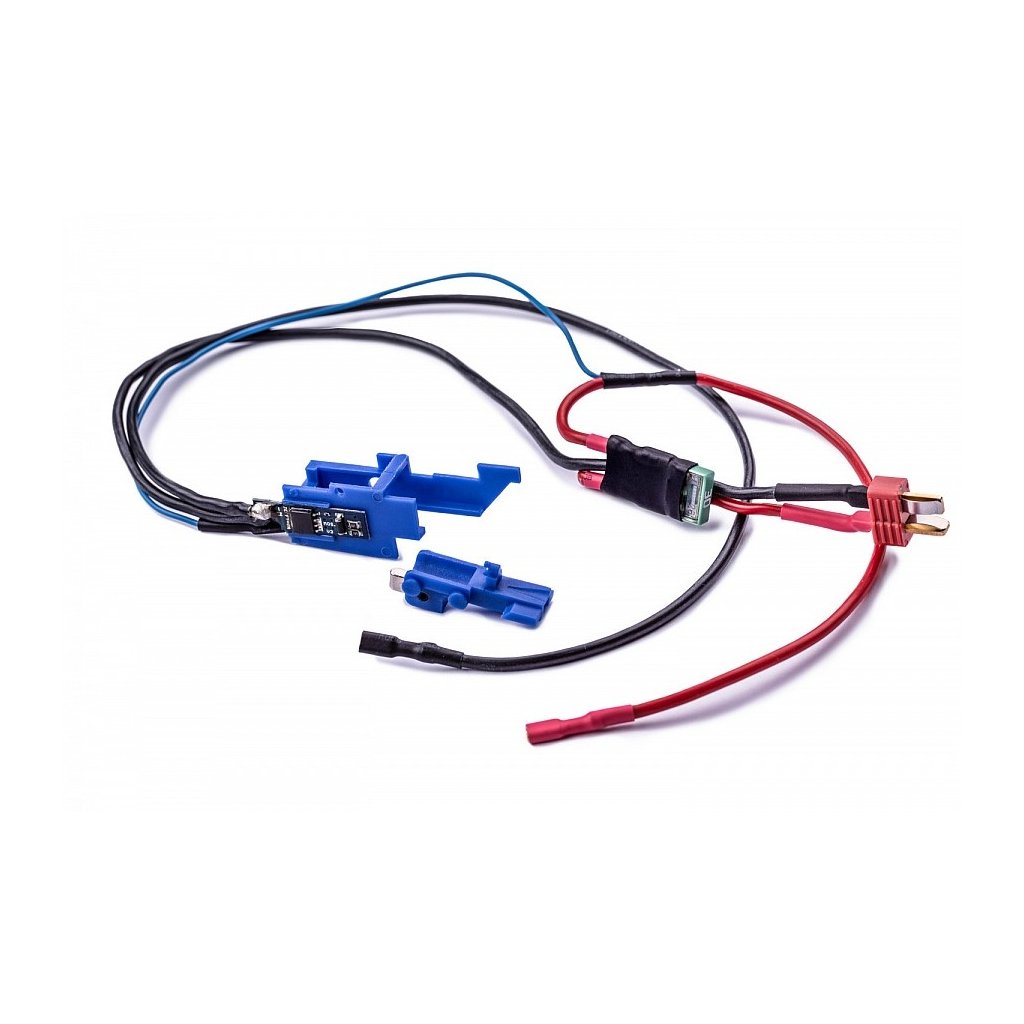

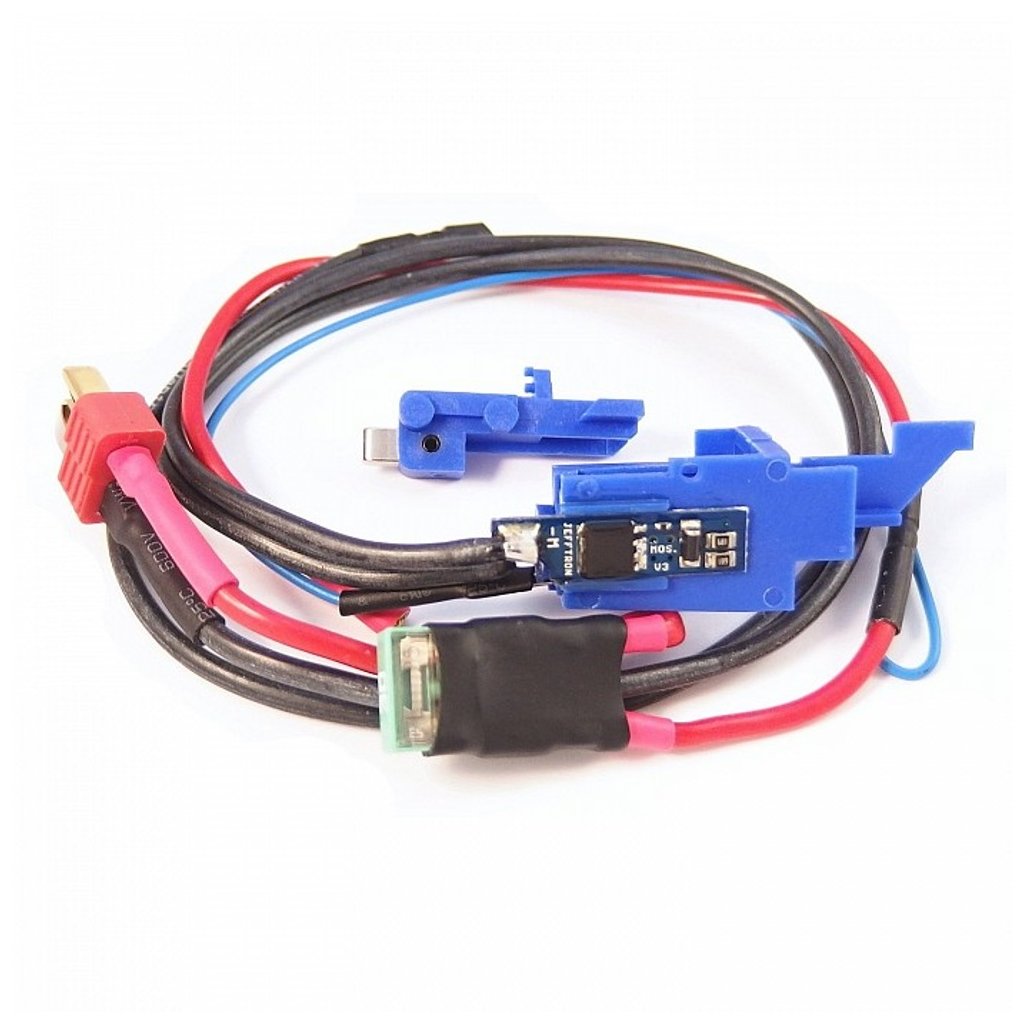

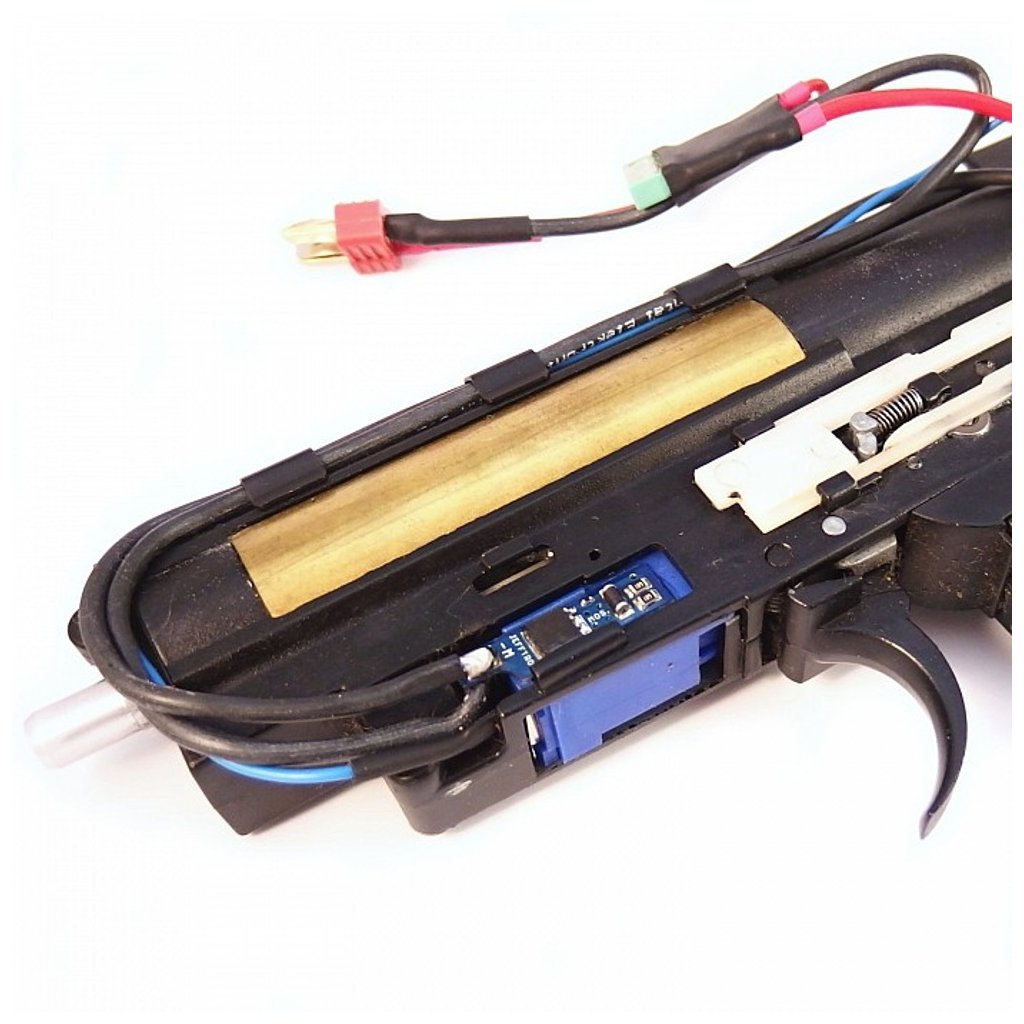

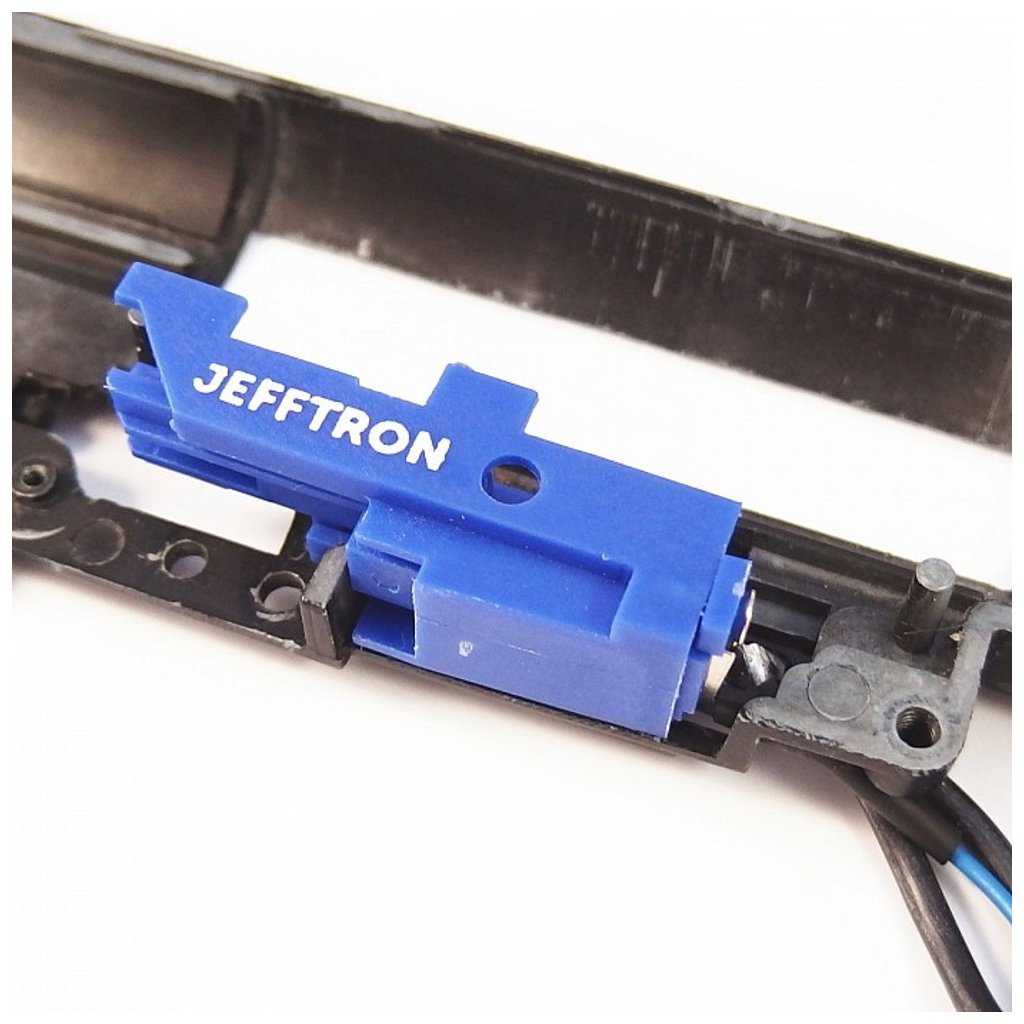

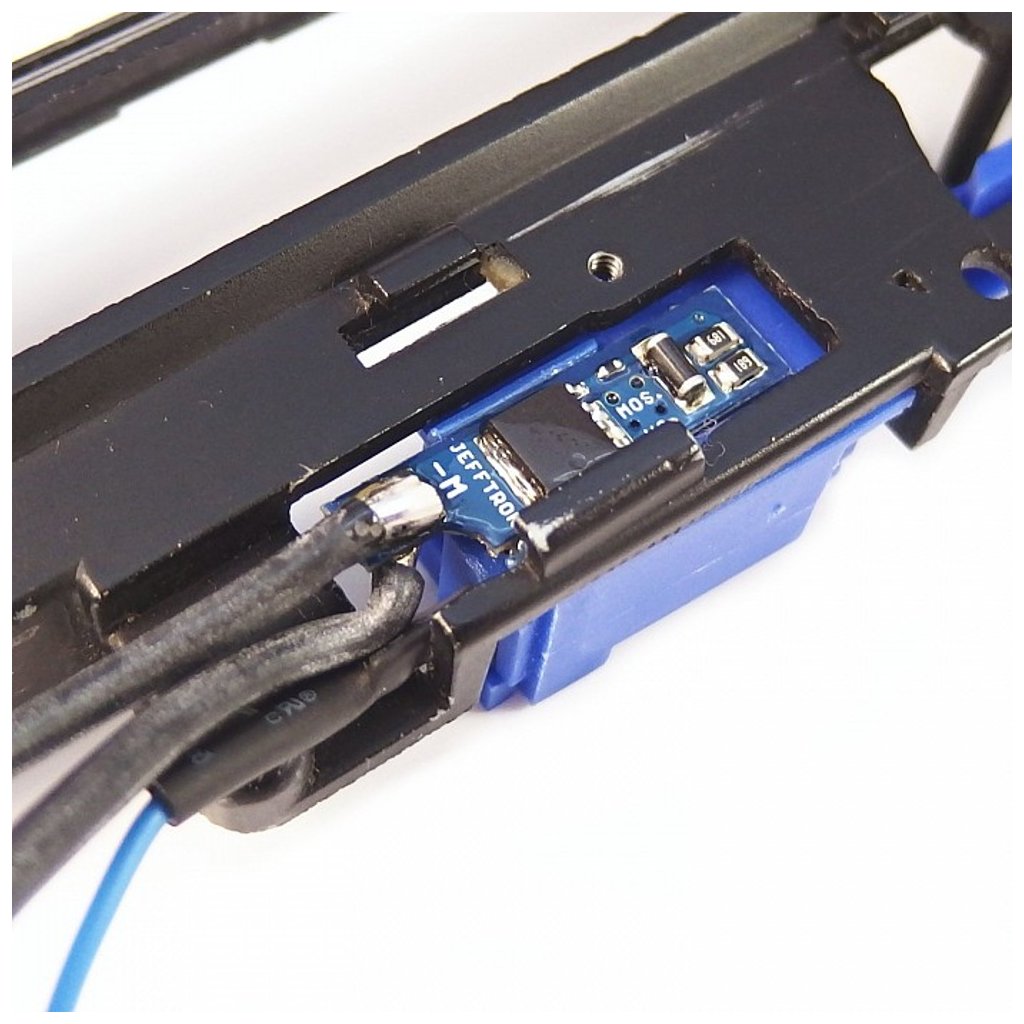

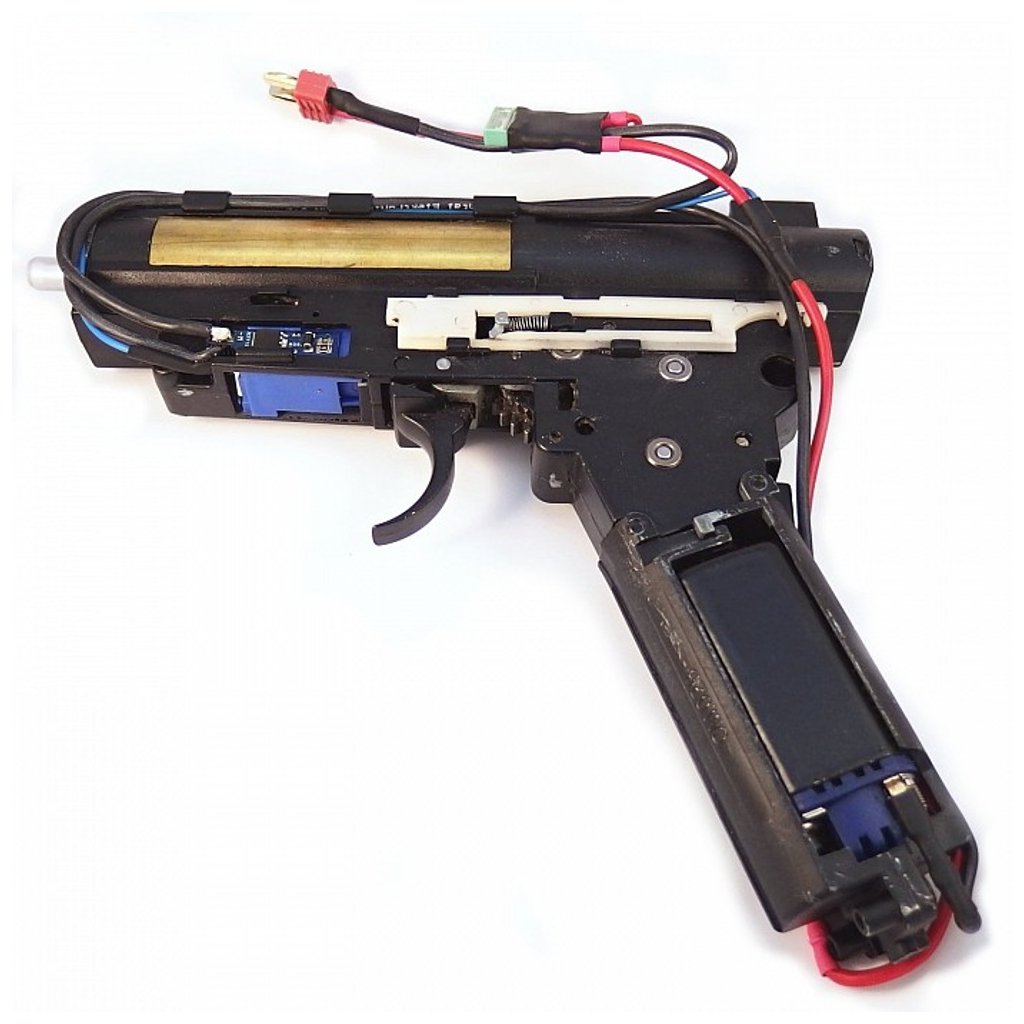

Fully integrated device inside the V3 gearbox instead of the original trigger contacts according to the Tokio Marui standard. Ready-made wiring adapted for a battery above the gearbox with a DeanT connector - no soldering required. SPECIFICATIONS: - Built-in MOSFET on switching contacts from SHS - Easy installation inside the V3 gearbox - Complete wiring allows for quick and easy installation in the weapon, designed for all types of AK weapons with a battery located above the gearbox - Power wires with thin and rigid MPPE insulation with a cross-section of 1.5 mm² (AWG16), blue wire with a cross-section of 0.34 mm² (AWG22) with MPPE insulation - Electronics board covered with varnish to protect against water ingress - If you want to use your own wires, choose the version without wiring - If you need a different type of cabling, choose the version with universal cabling - Designed for springs up to m160 (corresponds to a current of 75A for a single shot or 25A for burst fire for a maximum of 30 seconds). For higher loads, choose the Mosfet II (placed outside the gearbox) - Designed for all types of commonly used batteries up to 17 V (Ni-xx 8.4 - 12V, lipol 7.4 - 14.8V) - Trigger contacts do not burn out - No current is drawn in idle state - Due to the principle of operation of the AEG weapon mechanism, the piston stops in a random position in AUTO mode - For this device to function properly, the gearbox must have a functional interrupter, switch mechanism, reverse latch, trigger, and trigger stop (locked), i.e., as in a standard gearbox PACKAGING: - MOSFET on switching contacts with powered wires, DeanT connector, 30A mini plug fuse, and faston sockets on the wires - Trigger float - Installation manual WARNING:  To install this device, you need a professional who knows how to solder and disassemble an AEG weapon. Never use a transformer soldering iron! Despite our best efforts, we cannot guarantee 100% compatibility of the device with all version 3 gearboxes. For most commonly available and widely used brands, the Mosfet - V3 can be installed without major modifications.
