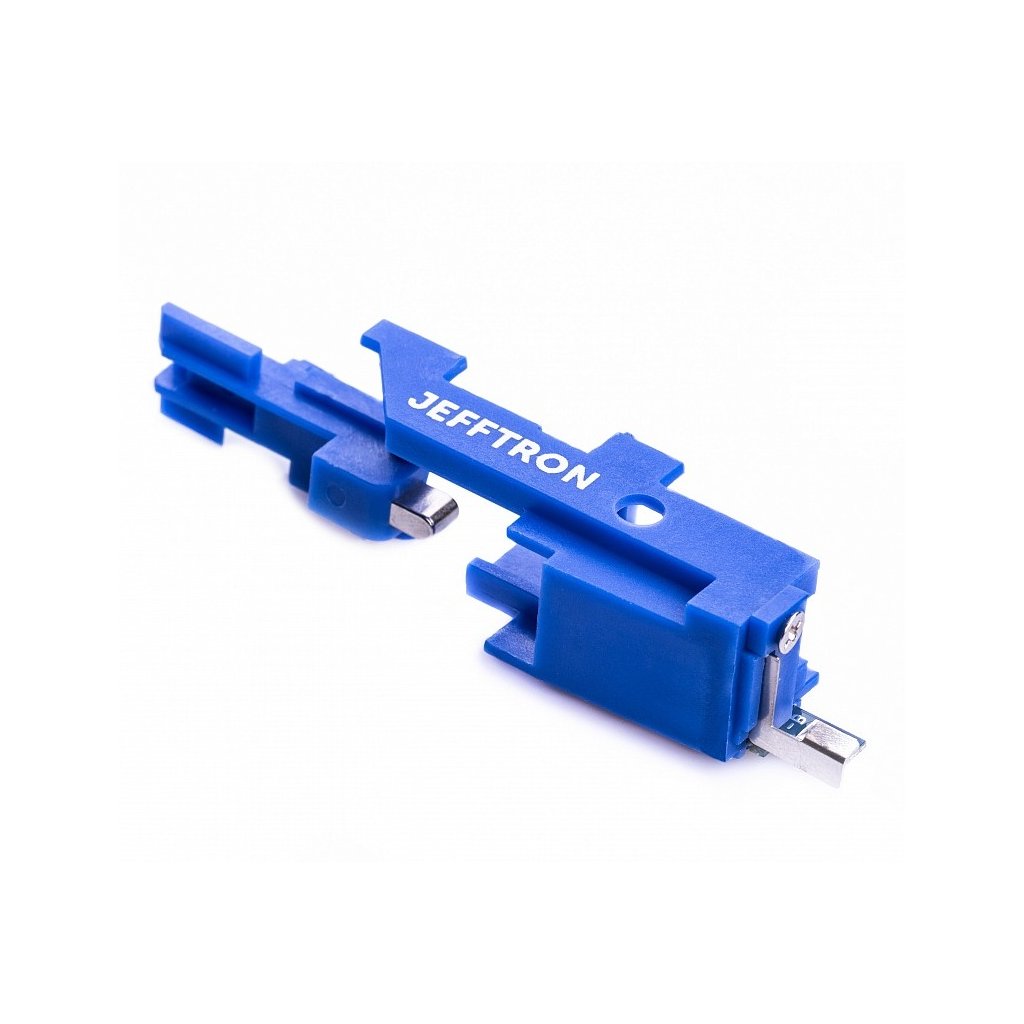

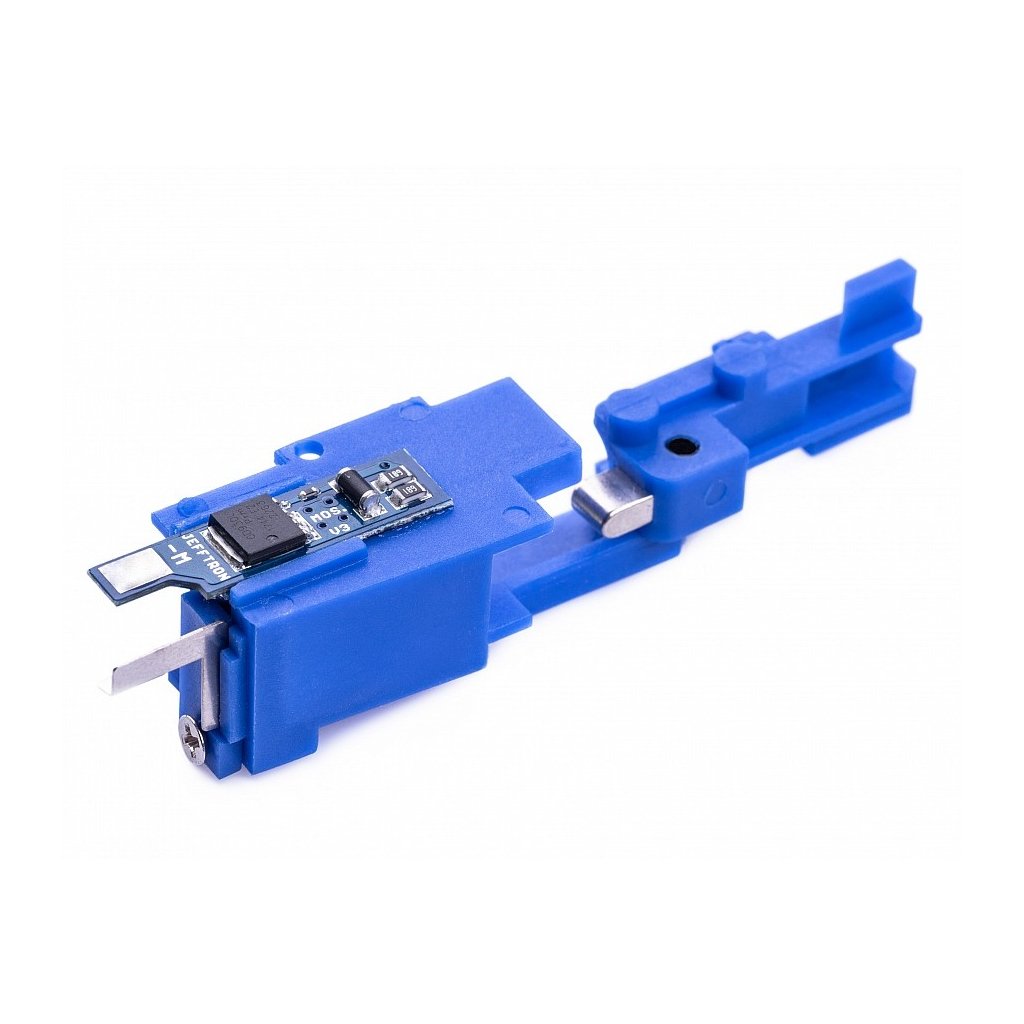

Mosfet V3 - JeffTron

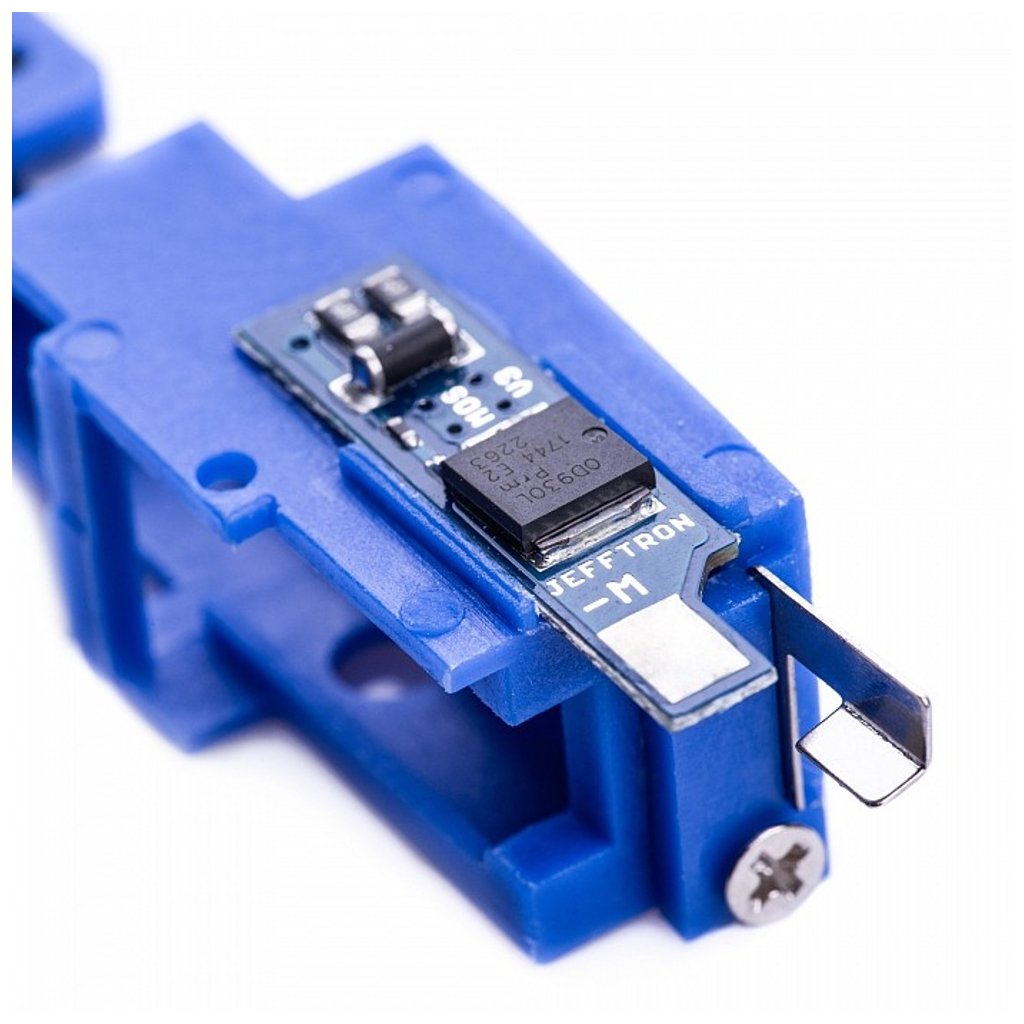

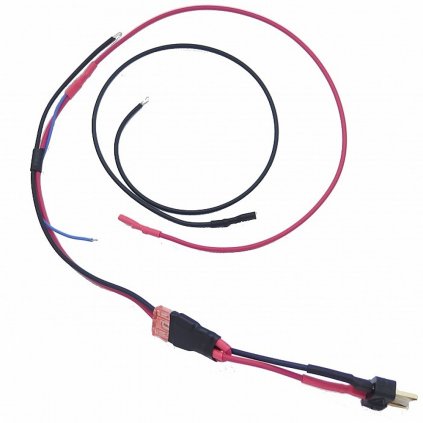

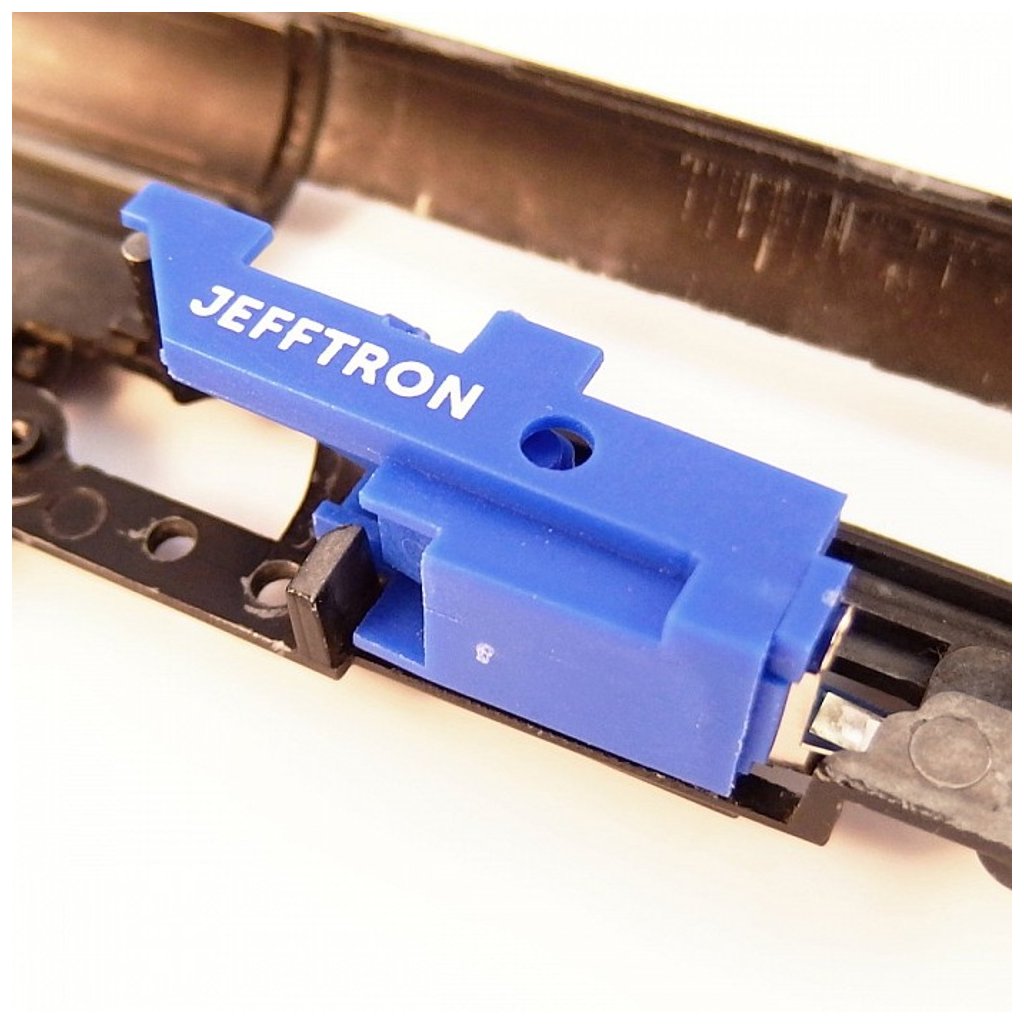

SPECIFICATIONS: - Built-in MOSFET on switching contacts from SHS - Easy installation inside the v.3 gearbox - Separate device without cables, cables with a max. cross-section of 1.5 mm² 2 can be used for the power circuit and cables with a max. cross-section of 0.5 mm² 2 for the signal circuit - Suitable for cables with a max. cross-section of 1.5 mm² and for the signal circuit with a max. cross-section of 0.5 mm² - Suitable for service centers; if you are unsure about soldering wires to the board, choose the version with wiring and accessories. - Designed for springs up to m160 (corresponds to a current of 75A for a single shot or 25A for burst fire for a maximum of 30 seconds). For higher loads, choose Mosfet II (placed outside the gearbox) - Designed for all types of commonly used batteries up to 17 V (Ni-xx 8.4 - 12V, lipol 7.4 - 14.8V) - Trigger contacts do not burn out - No current is drawn in idle state - Due to the principle of operation of the AEG weapon mechanism, the piston stops in a random position in AUTO mode - For this device to function properly, the gearbox must have a functional interrupter, switch slide, reverse latch, trigger, and trigger stop (locked), i.e., as in a standard gearbox PACKAGING: - MOSFET on switching contacts - Trigger float - Black heat shrink tubing 3.2mm, 20mm long - Installation manual
