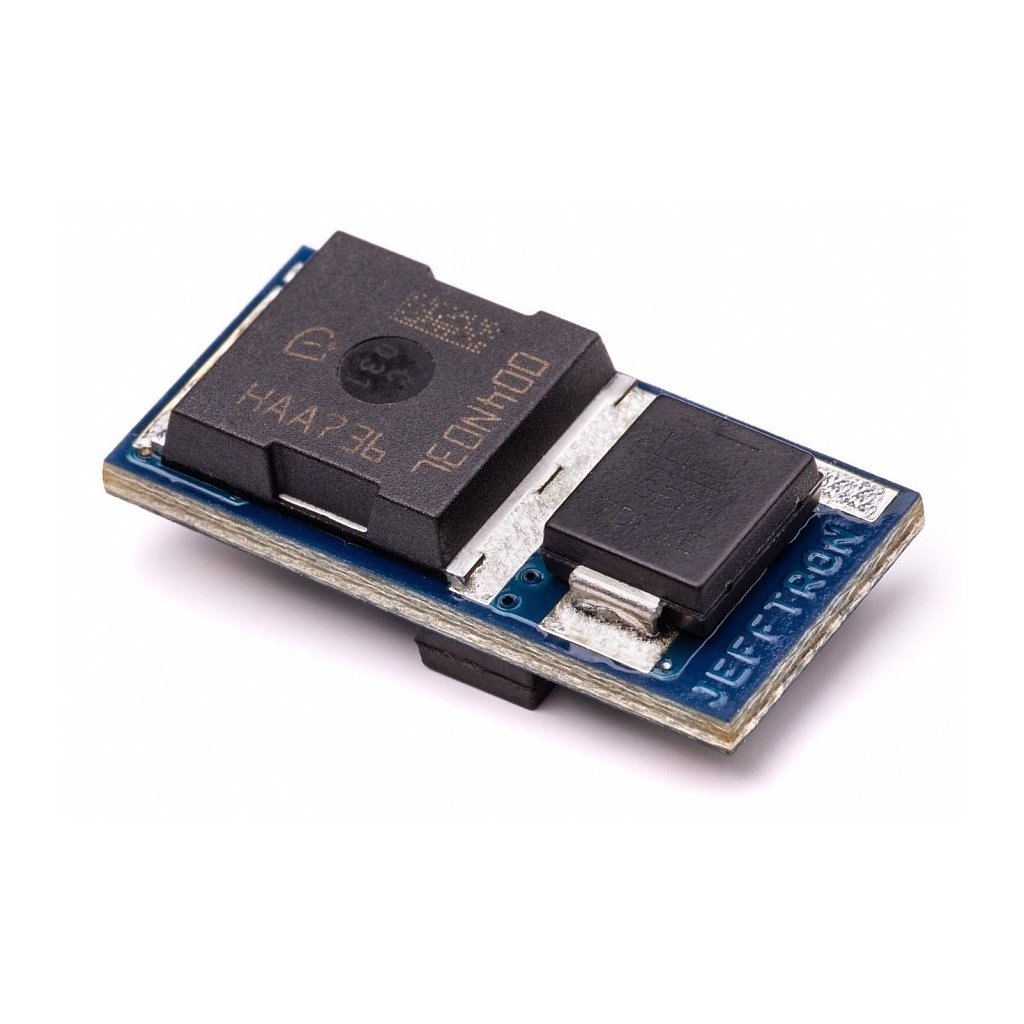

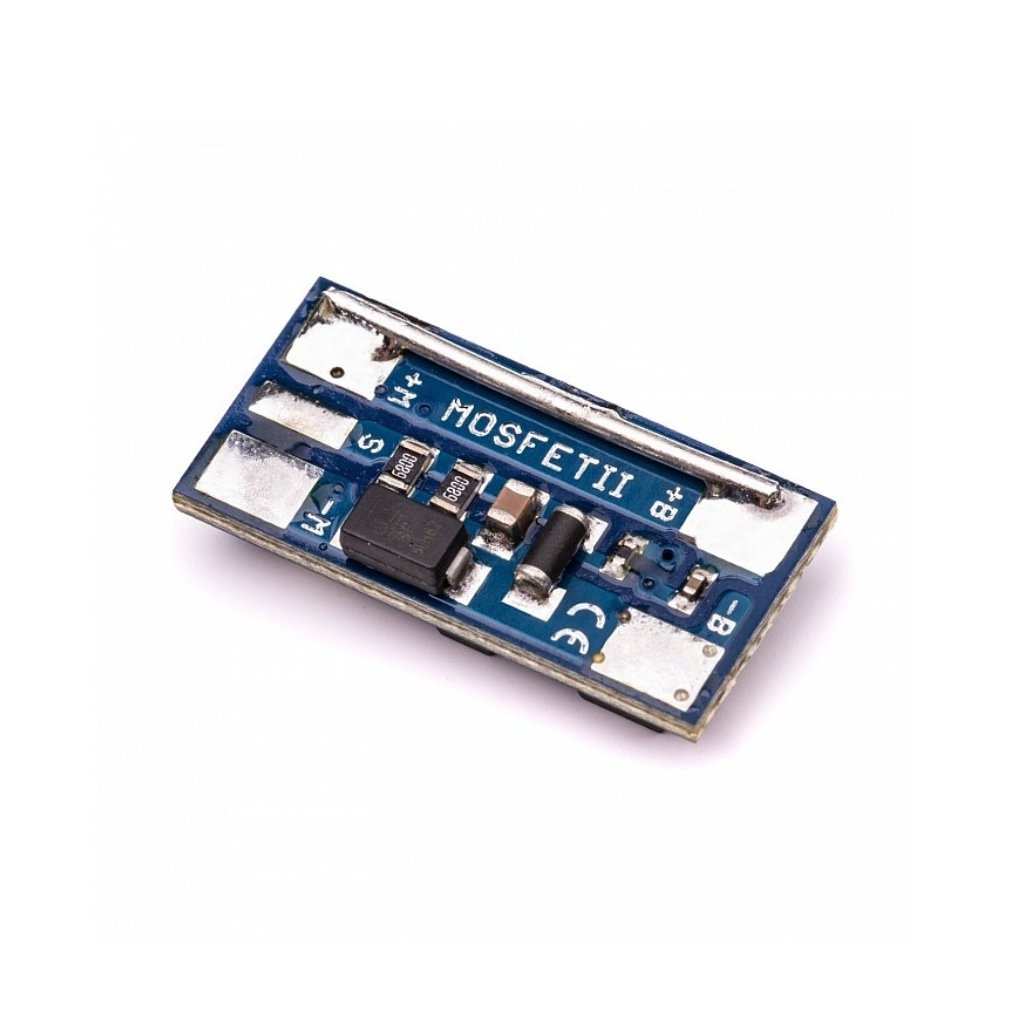

Mosfet II with universal wiring - JeffTron

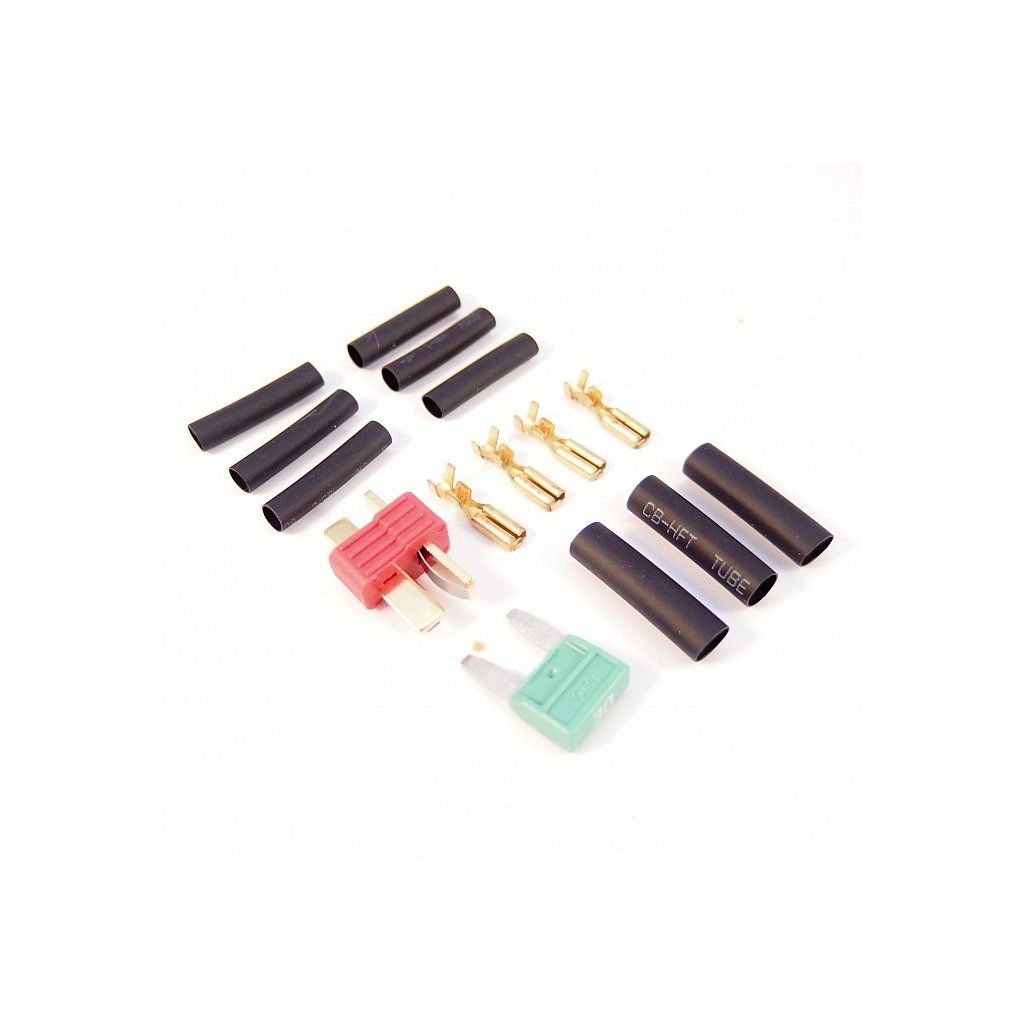

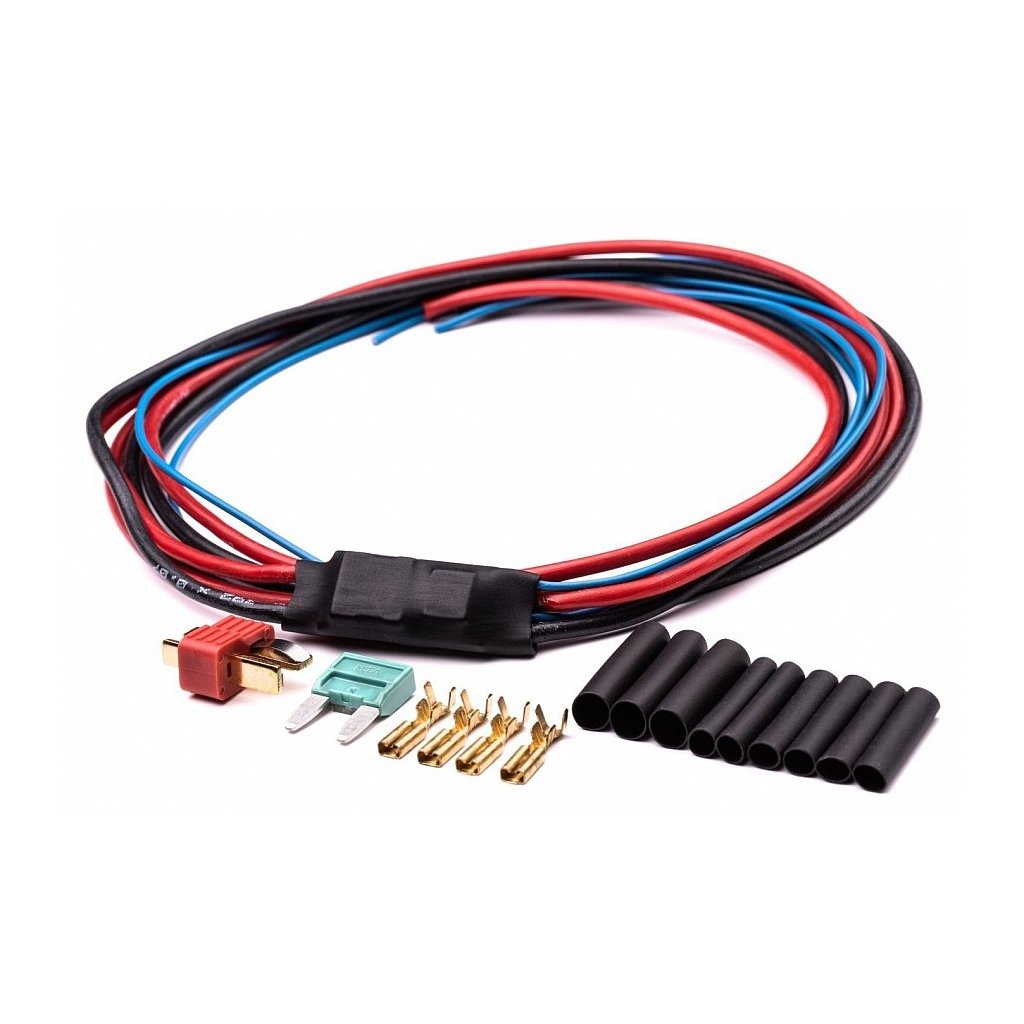

SPECIFICATIONS: - Pre-prepared wiring allows for faster and easier installation in the weapon and is long enough for all types of weapons. Simply shorten the wires to the required length and connect the connectors (included in the package) - The device is powered by 4 wires with rigid PTFE insulation with a cross-section of 1.5 mm2 and two with a cross-section of 0.25 mm2, 50 cm long. - Encapsulated in varnish to protect against water ingress into the device - If you want to use your own wires, choose the version without cabling - Designed for springs up to M210 (corresponds to a current of 150A for a single shot or 50A for burst firing for a maximum of 30 seconds) - Designed for all types of commonly used batteries up to 17 V (Ni-xx 8.4 - 12V, lipol 7.4 - 14.8V) - 6-wire connection - Device size 25x12x7mm - Trigger contacts do not burn out - No current is drawn in idle state - Due to the principle of operation of the AEG weapon mechanism, the piston stops in a random position in AUTO mode - For this device to function properly, the gearbox must have a functional interrupter, switch mechanism, reverse latch, trigger, and trigger stop (locked), i.e., as in a standard gearbox. PACKAGING: - Device with power cable - DeanT male connector - 30A mini plug fuse - 4x faston sleeve - 6x black heat shrink tubing 3.2mm, length 20mm - 3x black heat shrink tubing 4.8mm, length 20mm - Installation manual WARNING:  The installation of this device requires a professional who knows how to solder and disassemble an AEG weapon. Never use a transformer soldering iron!
