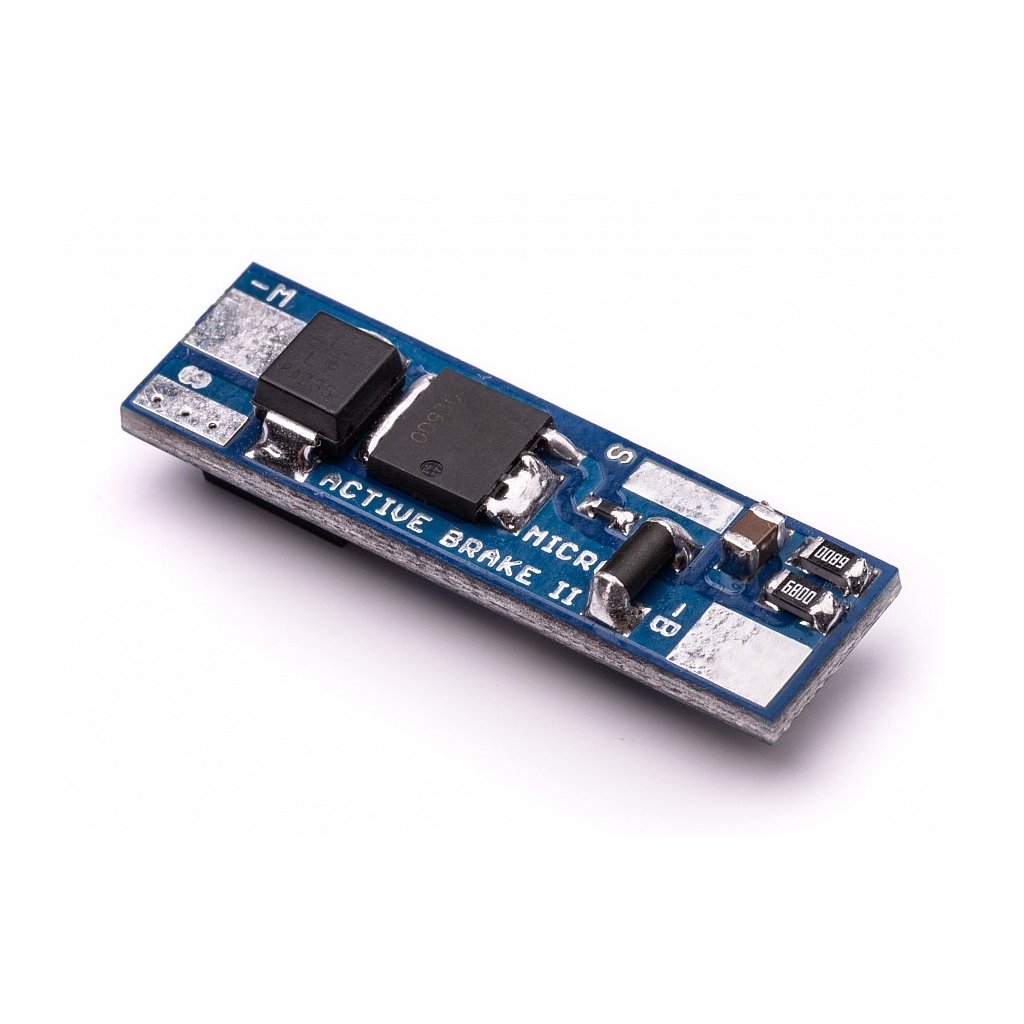

Micro active brake II with wiring - JeffTron

SPECIFICATIONS: - Very small device dimensions, fits almost anywhere - Pre-prepared wiring allows for faster and easier installation in the weapon, is long enough for all types of weapons. Simply shorten the wires to the required length and connect the connectors (included in the package) - The device is powered by 4 wires with rigid MPPE insulation with a cross-section of 1.5 mm² (AWG16) and two blue wires with a cross-section of 0.34 mm² (AWG22) with a length of 500 mm. - Encased in lacquer to protect against water ingress into the device - If you want to use your own wires, choose the version without cabling - Designed for springs up to m160 (corresponds to a current of 75A for a single shot or 25A for burst firing for a maximum of 30 seconds)  - Designed for all types of commonly used batteries up to 17 V (Ni-xx 8.4 - 12V, lipol 7.4 - 14.8V) - After the contacts are opened, the excess energy of the motor is used to stop it. The braking effect is strongest with a load motor with neodymium magnets. - 6-wire connection - Device size 27x10x7mm - Trigger contacts do not burn out - No current is drawn in idle state - Due to the principle of the AEG weapon mechanism, the piston stops in a random position in AUTO mode - For this device to function properly, the gearbox must have a functional interrupter, switch mechanism, reverse latch, trigger, and trigger stop (locked), i.e., as in a standard gearbox   PACKAGING: - Device with power cable - DeanT male connector - 30A mini plug fuse - 4x faston sleeve - 6x black heat shrink tubing 3.2mm, length 20mm - 3x black heat shrink tubing 4.8mm, length 20mm - Installation manual   WARNING:  This device must be installed by a professional who is skilled in soldering and disassembling AEG guns. Never use a transformer soldering iron!
