MAXX SV VFC SCAR-L/H Hop-Up Chamber (without LED) - MAXX

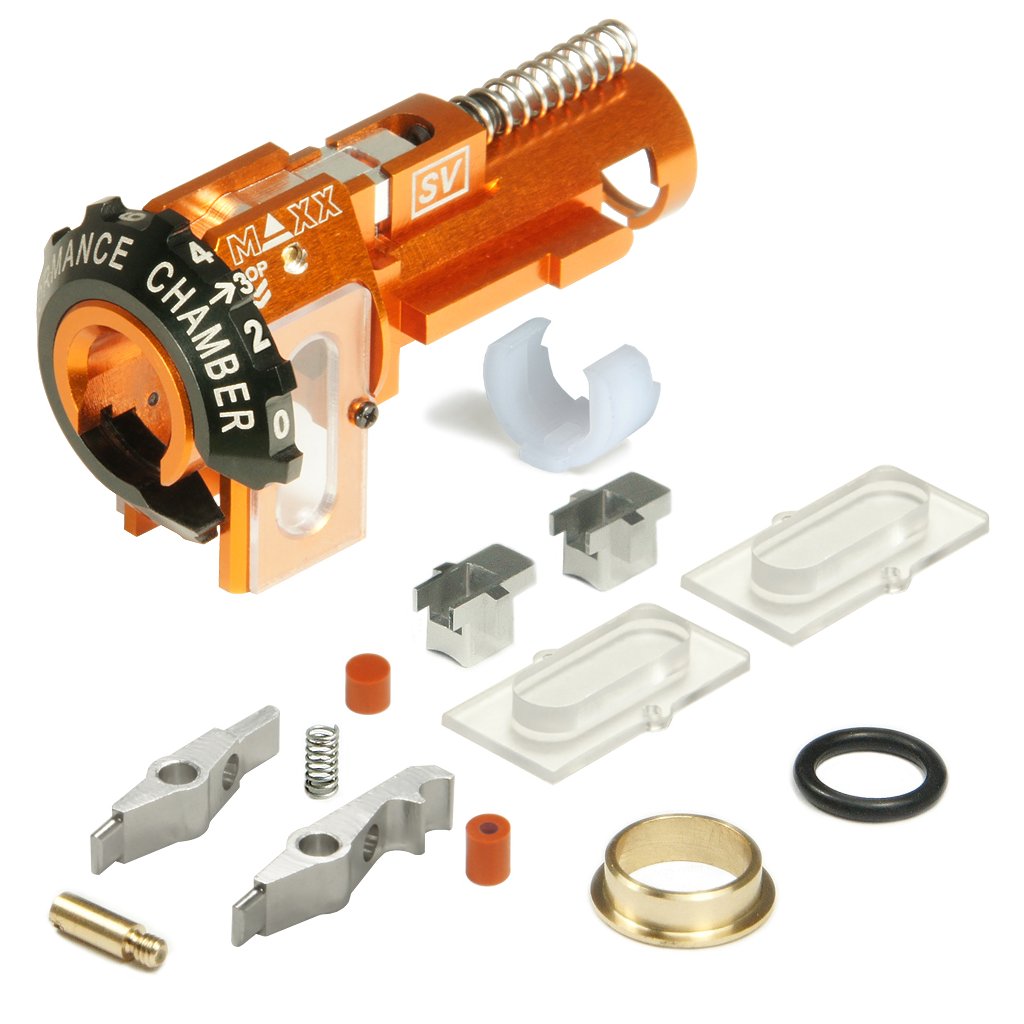

Product: MAXX SV Hop-Up Chamber for VFC SCAR-L/H (without LED) Description: The CNC aluminum Hop-Up chamber SV is a precision-machined component designed for VFC SCAR-L and SCAR-H AEG guns. This chamber minimizes air leaks, thereby increasing the performance of the gun. It is equipped with a precision rotary wheel for fine pressure adjustment. The upper part features a replaceable pressure lever, optimized for R-hop and standard Hop-Up systems. The chamber is compatible with nozzle lengths of 21.00 mm to 21.25 mm for SCAR-L and 38.50 mm to 38.75 mm for SCAR-H. It supports most hop-up rubbers without loss of FPS and without BB drop. Thanks to the redesigned CNC Delrin Locking C-Clip, a firm and stable barrel mount without rotation is ensured. Package contents: - 1x Aluminum CNC Hop-Up Chamber VFC SCAR-L/H SV - 2x Transparent chamber window - 1x Aluminum CNC Standard-Hop bracket - 1x Aluminum CNC R-Hop arm - 1x Standard-Hop silicone roller - 1x R-Hop silicone roller - 1x Aluminum CNC concave pressure pad R-Hop 4.5 mm length - 1x Aluminum CNC concave pressure pad R-Hop 6 mm length - 1x Brass CNC pin - 1x CNC Delrin Locking C-Clip - 1x Brass CNC centering ring - 1x Rubber O-ring - 1x Steel spring Technical parameters: - Total length: 48.35 mm - Total height: 27 mm - Outer diameter (mouth for gearbox): variable - Outer diameter (muzzle for outer barrel): min. 12 mm - Inner diameter (nozzle mouth): max. 8.3 mm - Outer diameter (magazine mouth): variable - Magazine neck length: variable - Material: aluminum 6061
