Cylinder head for GB v. II (Classic 2nd generation) - AirsoftParts

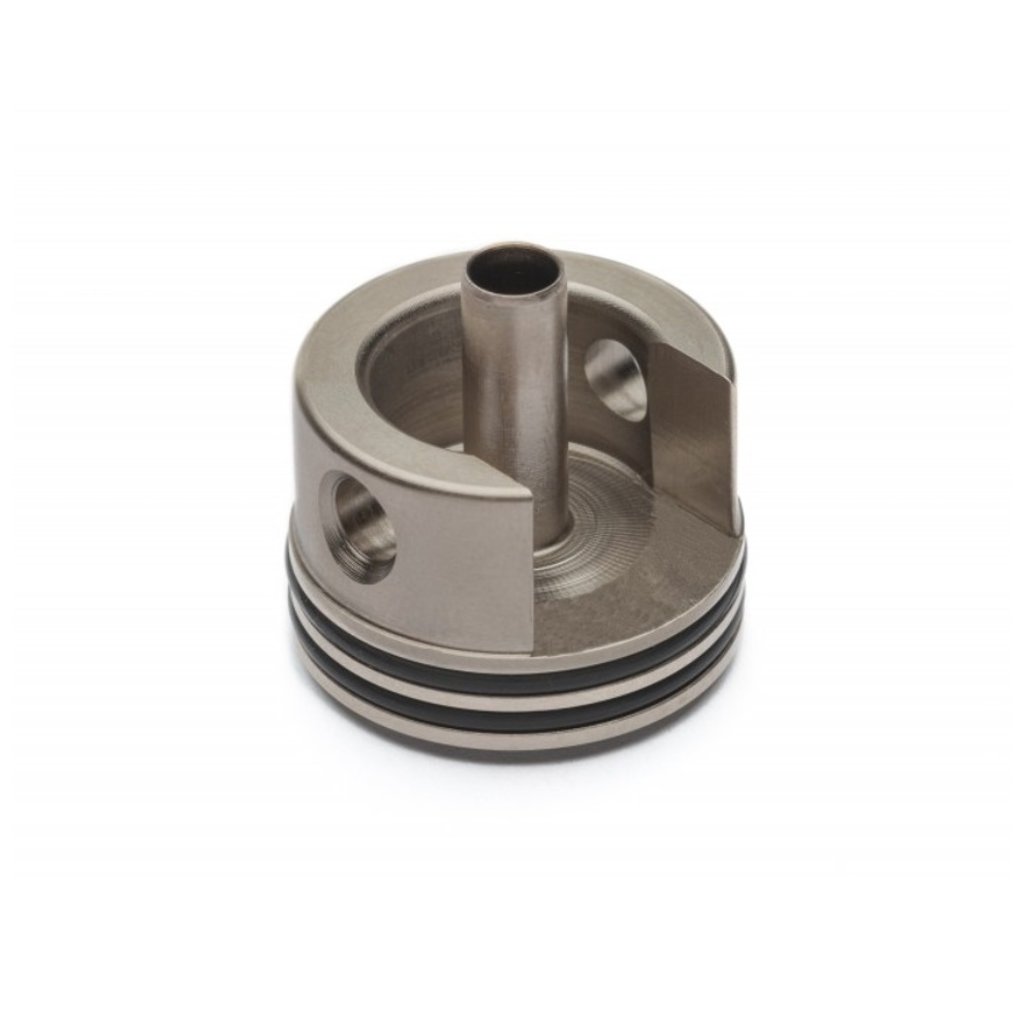

Cylinder Head for Gearbox v.II / v.III Classic 2nd Generation – Airsoft Parts (HV-CLAS) is manufactured from high-quality EN AW 6012 T6 aluminum on a CNC machining center in the Czech Republic. It is designed for maximum precision, durability, and reliable performance, supporting springs up to M150.

To ensure a perfect air seal between the cylinder head and cylinder, two O-rings are used. The first O-ring has a slightly smaller diameter for easier installation, while the second larger O-ring provides optimal sealing during operation. The impact surface features a shaped pad with a hardness of 70 ShA to help absorb impact and protect the gearbox shell.

The surface is treated with chemical nickel plating, creating a thin and uniform nickel layer. This significantly improves surface lubricity, wear resistance, and corrosion protection, ensuring long-term consistent performance.

Features:

• designation: HV-CLAS
• size: standard
• material: EN AW 6012 T6
• compatibility: gearbox v.2 and v.3
• maximum recommended spring: M150
• sealing: 2× O-ring
• surface treatment: chemical nickel plating
• hardness after plating: 660–850 HV (58–63 HRC)
• impact surface: shaped pad
• impact surface hardness: 70 ShA
• weight: 11.3 g
• made in Czech Republic
• manufacturer: Airsoft Parts
